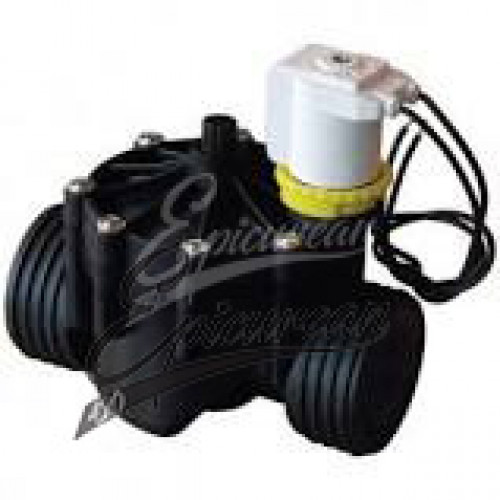

Electric check valve

Glass-fiber reinforced polyamide housing, NBR rubber membrane, stainless steel core and screws. Pre-pressure 0.4 bar, operating pressure 0.4 to 10 bar at 20 ° C. Maximum operating temperature + 4 ° C - + 75 ° C. Working current 2.2 watts, power consumption 185 MA, closed as standard. Coil with bayonet closure 24 vac. and manual operation.

Glass-fiber reinforced polyamide housing, NBR rubber membrane, stainless steel core and screws.

Pre-pressure 0.4 bar, operating pressure 0.4 to 10 bar at 20 ° C.
Maximum operating temperature + 4 ° C - + 75 ° C.
Workflow 2.2 watts, power consumption 185 MA, closed as standard.
Coil with bayonet closure 24 vac. and manual operation.

Rinse: 24 vac
Flow control: no
Flow at 0.5 bar pressure loss: 9.5 m³ / h
Flow at 1 bar pressure loss: 15.0 m³ / h
